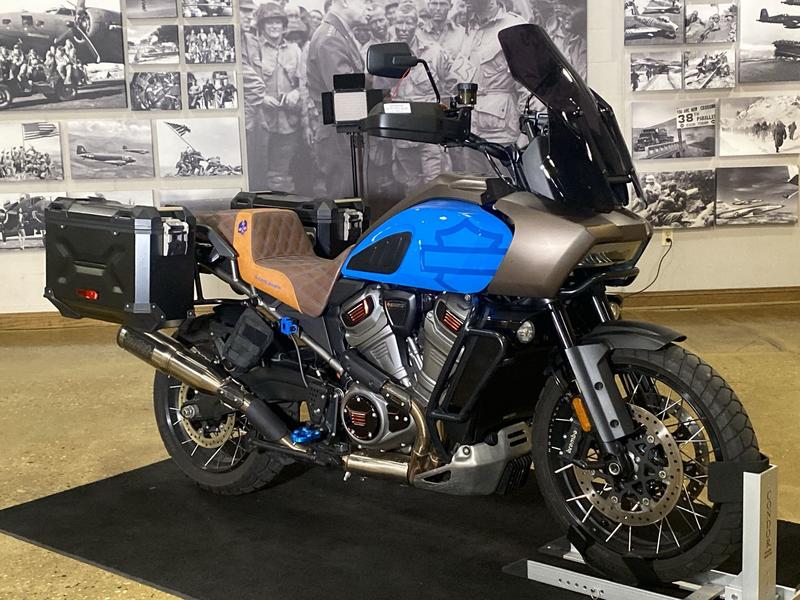

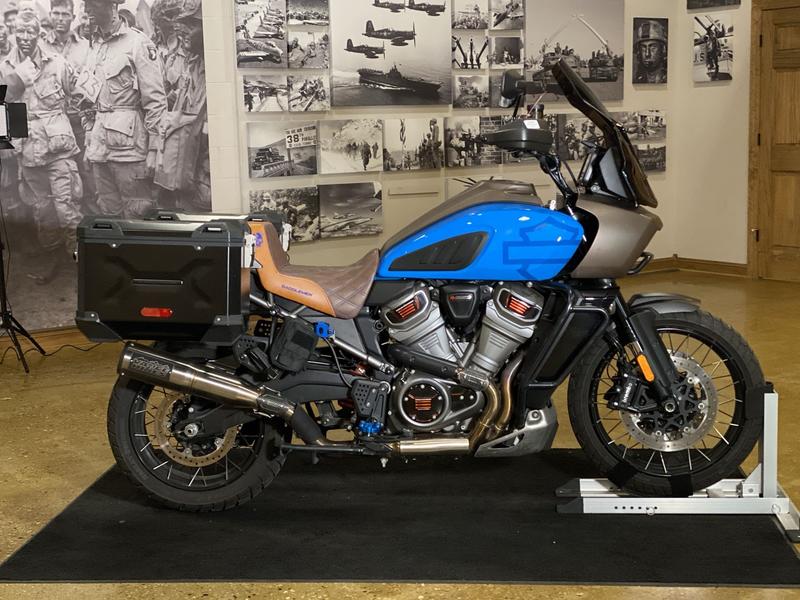

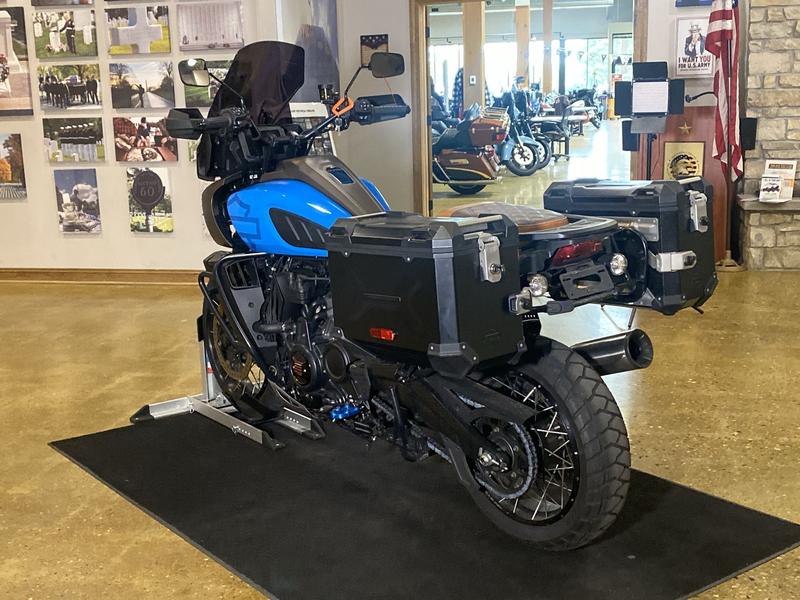

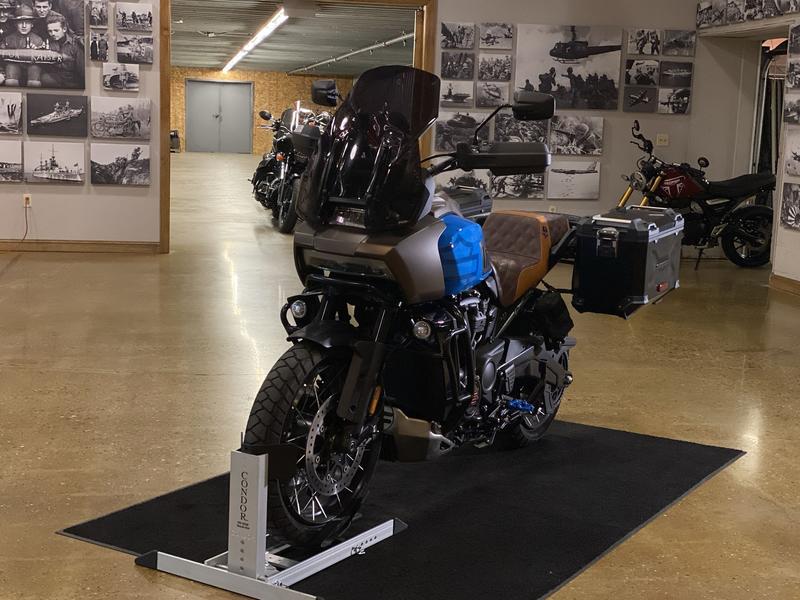

Pre-Owned 2022 Harley-Davidson® RA1250S – Pan America™ 1250 Special

Manufacturer Info

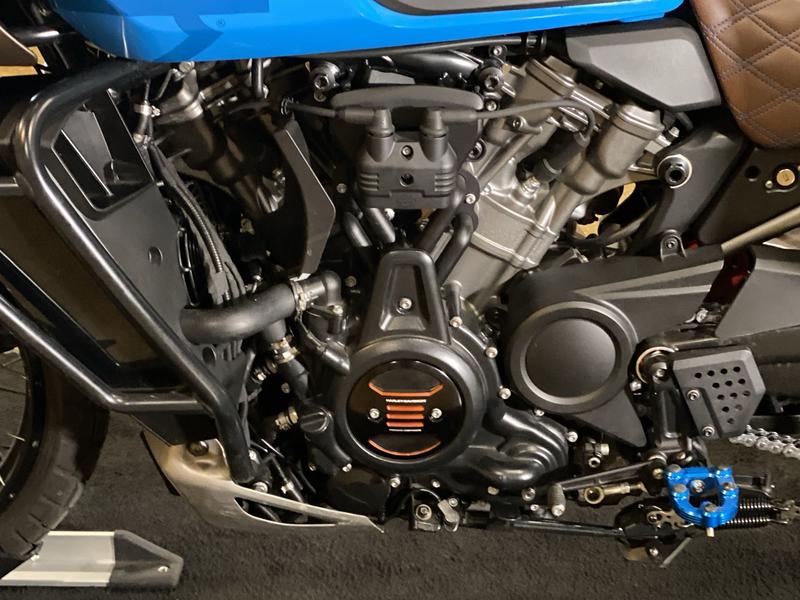

• Engine
• EngineRevolution® Max 1250
• Bore4.13 in. (105 mm)
• Stroke2.85 in. (72.3 mm)
• Displacement76.4 cu in (1,252 cc)
• Compression Ratio13.0:1
• Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)

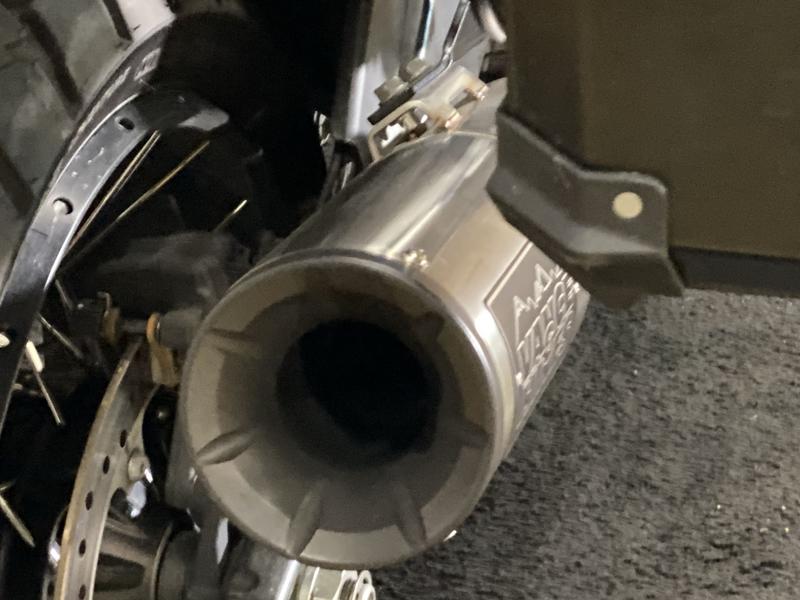

• Exhaust2-into-1-into-1; catalyst in header
• Dimensions
• Length89.4 in. (2,270 mm)
• Seat Height, LadenLow seat position: 31.1 in. (789 mm) | High seat position: 32 in. (814 mm) | Low seat position with optional ARH suspension: 30.4 in. (772 mm) | High seat position with optional ARH suspension: 31.4 in. (797 mm)
• Seat Height, UnladenLow seat position: 33.4 in. (850 mm) | High seat position: 34.4 in. (875 mm) | Low seat position with optional ARH suspension: 32.7 in. (830 mm) | High seat position with optional ARH suspension: 33.7 in. (855 mm)
• Ground Clearance6.9 in.
• Rake (steering head) (deg)25
• Trail4.3 in. (108 mm)
• Wheelbase62.4 in. (1,585 mm)
• Tires, Front Specification120/70R19 60V
• Tires, Rear Specification170/60R17 72V
• Front TireMichelin® Scorcher® “Adventure”, Radial
• Rear TireMichelin® Scorcher® “Adventure”, Radial
• Fuel Capacity5.6 gal. (21.2 l)
• Oil capacity
• Oil Capacity (w/filter)4.75 qt. (4.5 l)
• Weight, As Shipped534 lb. (242 kg)
• Weight, In Running Order569 lb. (258 kg)
• Luggage Capacity -Volume
• Performance
• Engine Torque Testing MethodJ1349
• Engine Torque94 ft-lb (127 Nm)
• Engine Torque (rpm)6750
• Engine Power150 HP / 112 kW @ 9000 rpm
• Lean Angle, Right (deg.)42
• Lean Angle, Left (deg.)42
• Fuel Economy: Combined City/Hwy46 mpg (5.1 l/100 km)
• Emissions
• Drivetrain
• Primary DriveGear, 49/89 ratio
• Gear Ratios (overall) 1st13.11
• Gear Ratios (overall) 2nd9.687
• Gear Ratios (overall) 3rd7.509
• Gear Ratios (overall) 4th6.057
• Gear Ratios (overall) 5th5.08
• Gear Ratios (overall) 6th4.436
• Chassis
• Front Fork47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
• Rear ShocksLinkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
• WheelsOptional Style Type: Annodized aluminum tubeless laced
• Wheel Type, FrontAluminum cast, satin black
• Wheels Type, RearAluminum cast, satin black
• Brakes, Caliper TypeFront: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
• Electric
• LightingDaymaker Adaptive LED Headlamp with 6-segment LED banking lamp, LED Tail/Stop lamp with signature tail lighting, LED Bullet Turn Signals

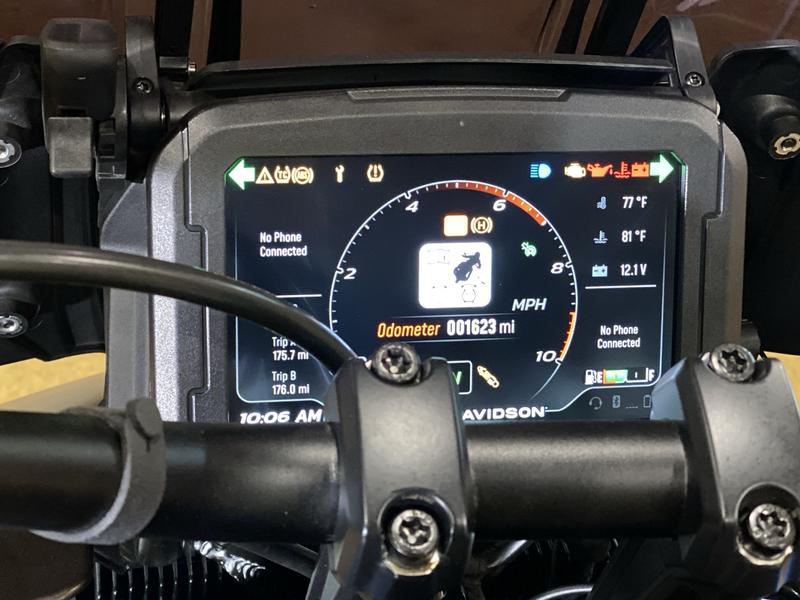

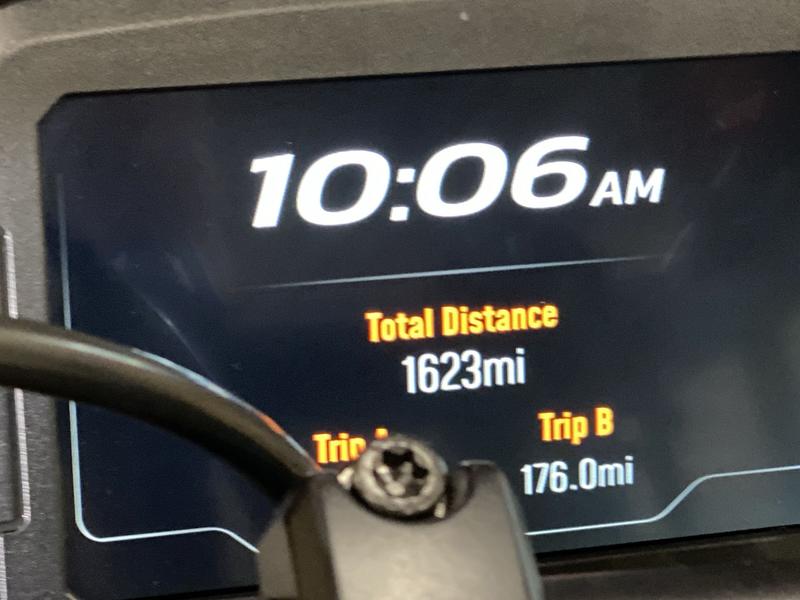

• Gauges6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY)
